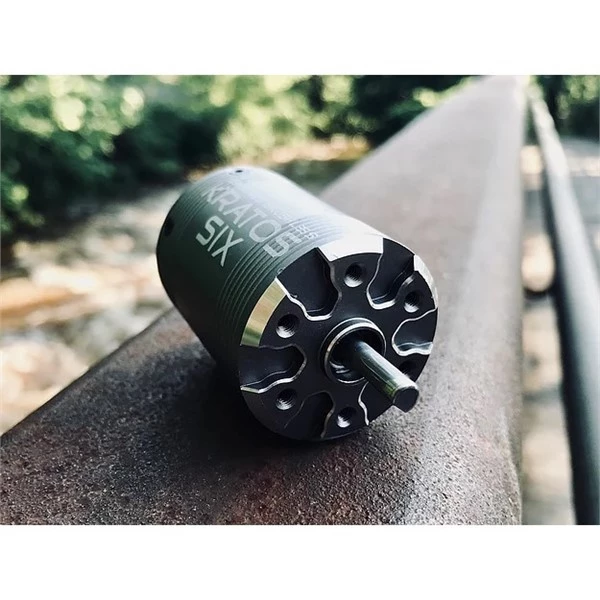

3Brothers RC – KRATOS SIX 3800kv 6-pole Sensored Brushless Motor

Our KRATOS SIX 540 6-pole staggered-magnet rotor, 18-slot stator sensored brushless motors deliver unmatched control that competes with the best of the brushed motors but provides the reliability of brushless power. The result? The fastest-slowest motors money can buy.

Features:

* 540-sized sensored brushless motor

* 6-pole staggered-magnet rotor

* High-grade neodymium magnets for optimum power and effiiciency

* 18-slot stator

* New phase-magnet isolation design

* HD 5mm pinion shaft

* Gold-plated solder tabs, for low resistance / protection against corrosion

* Adjustable timing

* Billet CNC one-piece shell with end cap for durability and improved cooling.

Technical Specifications:

* RPM(kv): 3800

* Construction: 18s/6p

* No-load [email protected]: 3.0A

* Operation voltage: 4.5v-12.6v

* Max current: 140A

* Max efficiency: 91%

* Max working temp: 302f

* Dimensions: L52 x D35.8

* Weight: 204.8g

* Pinion shaft: L15 x D5

* Battery: 2s-3s lipo

Waterproof

Wiring kit option: includes 12AWG silicon, high-strand wires, 4mm gold bullet connectors, and sensor wire with gold-plated connectors.
