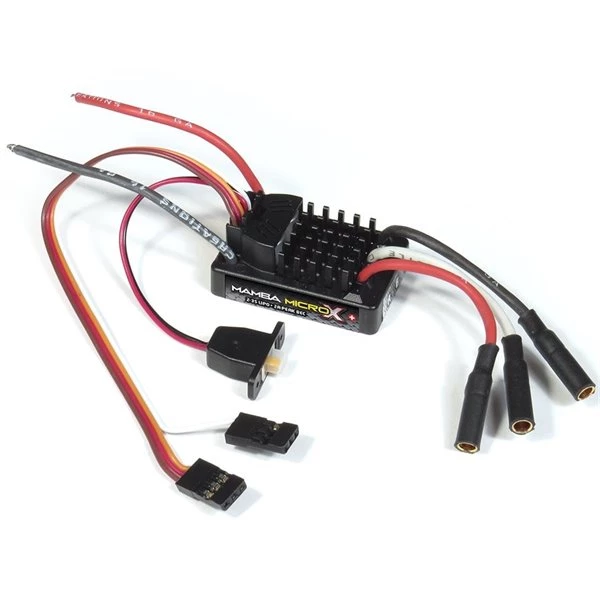

Castle Creation – Castle Creations Mamba Micro X 12.6V ESC, 2A Peak BEC

Castle Creations' Mamba Micro X puts Extreme Power, Extreme Control and Extreme Fun in a relatively small footprint. Small enough for most 1:18th scale vehicles, the waterproof Micro X is suitable for 2WD or 4WD vehicles over 1.5 lbs and up to 2.25 lbs. The Micro X and a Castle “mighty-mite” 0808 brushless motor is an awesome brushless power system upgrade for Mini-LST, Half-Eight, Mini-Quake and Spyder vehicles.
Following suit with the other Mamba X Series ESCs, the Mamba Micro X features even more extreme performance and capabilities than the model it replaces. The Micro X receives a heavy-duty BEC (battery eliminator circuit) to handle today’s high-draw digital servos and also features a programmable Auxiliary Wire (AUX) that allows the user to make “on-the-go” adjustments to several settings, such as torque control and max throttle, directly from a compatible transmitter. This allows you to fine-tune the performance of the Micro X to meet changing driving conditions.

Sensor Support
The Micro X features the ability to run sensored brushless motors (with the purchase of an optional Sensor Harness). Now, a whole new group of R/C enthusiasts will be able to enjoy the power, control and fun of a Castle power system in your vehicle. The Micro X is cable of running on 2S up to 3S LiPo power with a highly-efficient heat sink design to keep you running cool, even when pushing it hard in mud, sand and other heavy power applications.

Castle Link: Industry-Leading Software Functions and Tuning
Small but mighty, the Micro X can be “custom tuned” via Castle’s industry-leading Castle Link software. The Micro X includes a coupon for a free Castle Link USB device. This allows access to the full programming suite of adjustable settings so that enthusiasts can tune and tweak the performance of their Micro X-equipped vehicle to their preference.

Castle Link adjustable settings for the Micro X include:
Throttle
Braking Curve
Drag Brake
Auto LiPo Cutoff
Punch Control
Reverse Type
Motor Type

Mamba Micro X ESC + Motor Combos
The Micro X is available as a ESC only or in an ESC + Motor combination featuring the small but very, very powerful 0808 4 Pole brushless, sensorless 20mm motor. The powerhouse Castle 0808 motor combo is available in 4100KV, 5300KV or 8200KV ratings.

Specifications:
Input Voltage Range: MIN: 2S LiPo; MAX: 3S LiPo, 12.6V
BEC Specifications: Adjustable: 5.5V or 7.5V (2A Peak), default 5.5V
Operating Environment: Waterproof* design allows for use in nearly any environment. (See Product Use Statements)
Brake: Proportional
Reversible: Yes – with lockout
On/Off Switch: Yes, waterproof
ESC Cooling Fan: No
Size: 1.61”in x 0.75”in x 1.10” inches (4.1 x 1.9 x 2.8 cm)
Weight (w/o battery connector soldered to ESC): 1.20 oz (34.01 g)
Application Guidelines: 1:18th scale RC hobby vehicles weighing up to 2.25lbs.
Items Needed for Operation: Battery Connector required, 4mm Castle Connectors are recommended.
Product Use Statements:
Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.
Applying voltages higher than 12.6 volts will cause irreparable damage to your controller, voiding your warranty.
Recommended battery capacity for 1:18th scale vehicles is 1500mAh. Castle recommends using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).
The Mamba Micro X has 3.5mm bullet connectors on the motor wires and the battery input wires are bare. You must add the connector of your choice to the battery leads. Castle recommends a high current connector rated for at least 40 amps.
