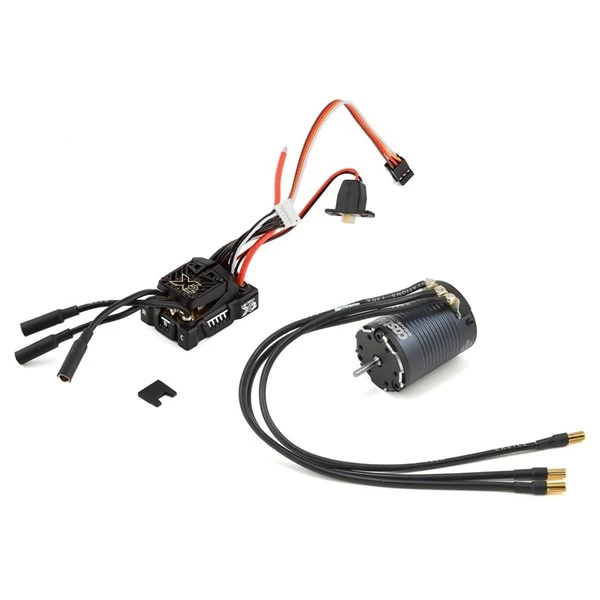

Castle Creation – Castle Creations Mamba Micro X2 Crawler Waterproof Sensored Combo W/2850Kv Slate

The Castle Creations Mamba Micro X2 Crawler Waterproof Sensored Combo with 1406-2280Kv motor is a refresh of the popular Mamba Micro X. The Mamba Micro X2 Crawler ESC increases the maximum input voltage to 4s, with added DATA LOGGING and CRYO-DRIVE TECHNOLOGY that allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it boasts an 2 amp peak BEC, is waterproof* and offers SENSORED MOTOR SUPPORT.

This ESC and motor combo is ideal for the weight conscious builder or where space is limited, used in low speed crawling or trail running in vehicles weighing less than 8lbs on 2s or 3s. It can also be used in more aggressive setups up to 4lbs for extended hill climbing and rock racing.

If you're looking for a more aggressive setup in a heavier rig, like rock racing and extended hill climbing, Castle recommends you run the Mamba X ESC. Like its predecessor it includes improved features for rock crawling, including active drag brake and drag brake ramp.

NOTE: Use of an external BEC is required if running a high power or digital servo.

Features:

Input Voltage range 2S-3S with included motor
Adjustable BEC 5.5V or 7.5V (2A Peak), default 5.5V
Waterproof design
Sensored Motor capable
Convenient transmitter programming for six common adjustable settings
Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake
Audible Alerts that will notify you of possible issues with calibrations and error conditions
Designed and manufactured in Olathe, Kansas and is backed by manufacturer 1-year warranty
Specifications:
ESC:
Input Voltage Range: 2S-4S LiPo (16.8V Max)
BEC: Adjustable; 5.5V or 7.5V (default 5.5V) 2A Peak
Operating Environment: Waterproof* design allows for use in nearly any environment
Brake: Proportional
Reversible: Yes, but may be disabled
On/Off Switch: Yes, waterproof
Cooling Fan: Not included
Size (L x W x H): 41.6 mm x 29.4 mm x 21.3 mm (1.64" x 1.16" x .84")
Weight (with wires): 1.66 oz / 47 grams
Connectors: 4.0mm bullets
Max. Recommended Vehicle Weight: 1:14 scale RC hobby vehicles weighing up to 3.0lbs and 1/10 scale low speed crawler vehicles up to 9lbs.
Programmability: Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX Transmitters.
Motor:
Input Voltage Range: 2S-4S LiPo
Kv: 2850
Max. RPM: 100,000
Can Length: 49.5mm
Can Diameter: 36mm
Weight (w/wires): 197 g / 6.9oz
Shaft Length: 15mm
Shaft Diameter: 1/8" (3.17mm)
Mounting Hole Specifications: M3 @ 25mm
Cooling Fan: Optional – Coming Soon
Connectors: 4mm male Castle Bullet Connectors attached to replaceable 13 gauge wire; includes 210mm length sensored wire.
Application Guidelines: Ideal for 1:10 scale low speed rock crawlers/trail runners on 2S-3S weighing less than 8lbs. Can also be used in more aggressive setups in lighter 1:10 scale touring cars, stadium trucks or buggies weighing up to 5lbs.
Max. Recommended Vehicle Weight: 8lbs when used for low speed/moderate driving style like rock crawling and trail running; 5lbs for more racing and aggressive driving styles.
Product Use Statements:
Applying voltages higher than 16.8 volts will cause irreparable damage to your controller, voiding your warranty.
Minimum recommended battery capacity for 1:18 scale vehicles is 1500mAh. Castle recommends using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).
Mamba Micro X Crawler has 4.0mm bullet connectors on the motor wires and the battery input wires are bare. You must add the connector of your choice to the battery leads. Castle recommends a high current connector rated for at least 40 amps.
Although the Mamba Micro X2 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, Castle suggests users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
Includes:
Mamba Micro X2 ESC with 4mm Connectors
1406-2850Kv Sensored Motor
Sensor Harness
Coupon for free Castle Link USB adapter
Driver's Ed and Quick Start Guide
Castle Decals
Needed to Complete:
Battery Connector: Castle 4.0mm Polarized Connectors, Deans Ultra Plugs and XT60 are recommended.
