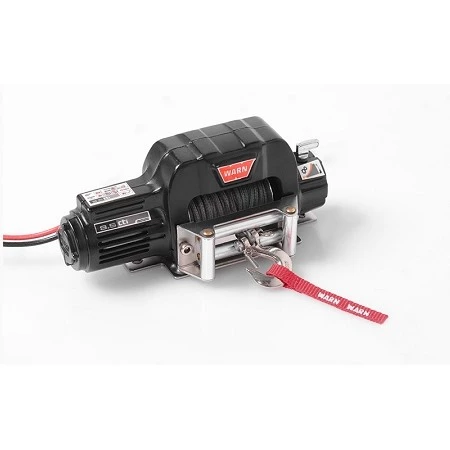

RC4WD – 1/10 Warn 9.5cti Winch

One of the most iconic names in off-road. This is an all new RC4WD 1/10 Warn 9.5cti winch. This winch offers ultra scale looks, and superior quality and craftsmanship. Officially Licensed by Warn.

Specifications:
Cast Aluminum Case
Stamped Steel Components
Working Spring Loaded Warn Hook
Synthetic Winch Rope
Highly Detailed
Full Warn Decals Installed
Voltage: 6v to 11.1v
Can operate on 3 Cell Lipo
Easily Rebuildable
3ft/.9M Rope Pre-Installed
Same Mounting Locations as Bulldog Winch
Load Limits: Dead Lift 6.6lbs/3kgs
Load Limits: Rolling Drag 9lbs/4.1kgs
30 Day Warranty
Length: 2.9in / 73.68mm
Total Width: 1.25in / 31.75mm
Height: 1.31in / 33.56mm
Weight: 2.1oz / 60g

What's Included:
1x RC4WD 1/10 Warn 9.5cti Winch
1x RC4WD Warn Winch Pull Tag
4x M2.5x4mm SHCS (Black) (Z-S0760)
4x M2.5x6mm SHCS (Black) (Z-S0855)
1x Warn Decal Sheet
Required Parts:

RC4WD Warn 1/10 Wireless Remote/Receiver Winch Controller Set (Z-S1092)
RC4WD Wired Winch Control Unit (Z-S1089)
Optional Parts:

RC4WD ARB Winch Snatch Block (Z-S0341)
RC4WD 1/10 Warn 9.5cti Winch CNC Mounting Plates (Z-S1168)
RC4WD 1/10 Warn Hawse Polished Aluminum Fairlead (Z-S1310)
Winch Mount for Axial Wraith (Z-S1307)
RC4WD Marlin Crawler Front Winch Bumper for Trail Finder 2 (Z-S1496)
RC4WD Rock Hard 4×4 Full Width Front Bumper for Axial SCX10 Jeep (Z-S1338)
RC4WD 1/10 Viking Roller Fairlead for Warn 9.5cti Winch (Z-S1498)
RC4WD Warn 1/10 Premium Winch Hook (Z-S1551)
RC4WD Foldable Winch Anchor (Black) (Z-S1623)
RC4WD Warn Rock Crawler Front Winch Bumper for Trail Finder 2 (Z-S1590) (With Mount Plate Reversed)
Metal Front Winch Bumper for Traxxas TRX-4 Land Rover Defender D110 (VVV-C0469)
Replacement Parts:

Replacement Motor/Gearbox for Warn 9.5cti 1/10 Winch (Z-E0051)
1/10 Warn Hook (Z-S1011)
Synthetic Winch Rope (Z-S0038)
Replacement Hardware:

4x M2x5mm FHCS (Silver)
2x M2x4mm SHCS (Silver) (Z-S0927)
2x M2x6mm SHCS (Silver) (Z-S0994)
Notes:
This winch requires a control unit. We offer both a wired (uses your radio's third channel) and wireless unit (hooks directly to a battery).
This product is not waterproof. You may be able to waterproof on your own, but this will void the manufactures warranty.
For Warnings, Precautions, Safety and Damage Limits:Click Here
Same mounting points as our Bulldog winches
Dead Lift is defined as the winch lifting a product from a higher position with no help from the product being lifted.
Rolling Drag is defines as a truck using its rolling force to help the winch pull a truck or products weight.
Warranty Definition:

This product will be free from defects in materials and workmanship and fully functional when new.
The gearbox can handle certain weight limits. If you over load the winch, the gearbox or motor will fail. This is not considered a warranty issue. We have replacement motor/gearbox units and provide clear instructions on replacement.
Instruction Manual:

Detailed Assembly Click Here
Warn and the Warn name are registered trademarks of Warn Industries. The Warn logo is property of Warn Industries and used under license to RC4WD.

This product has been tested and approved by the Recon G6. It is Recon G6 Certified.
