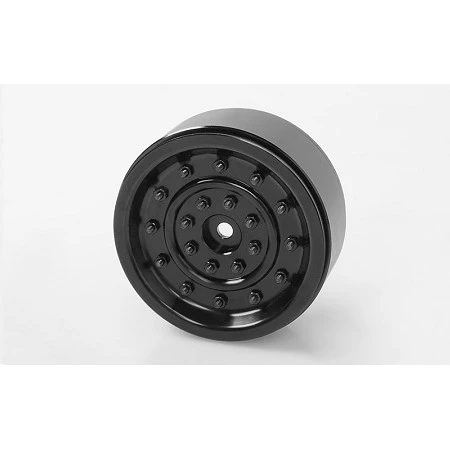

RC4WD – Humvee 1.9″ Internal Beadlock Wheel

The most scale wheel to date. CNC machined aircraft grade aluminum in extreme detail with functional internal beadlock. Engineered by Fracture in New Zealand, manufactured by RC4WD.

Why Hummer style?

Because of the difficulties of fitting a traditional bead-locking ring on the inside of a wheel while clearing steering components, a different approach is required for double beadlocks. Internal beadlock approach is completely different from normal slot based beadlock.

Product warning: Because the scale nature of this wheel, each tiny steel nuts and bolts is extremly easy to break during installation. Each wheel is shipped unassembled and can take up to 45-60 minutes to assemble just one wheel.

Specifications:

CNC machined billet aluminum rims
Internal beadlock design
Wheel width: 25.4mm / 1inch
OD:48.26
Positive Offset: 16.1mm/0.63inch
Wheel weight: 91g/3.2oz (each wheel)
12mm Hex mount
Fit 1.9" size tires

Installed on our Fracture's truck:

What's Included:

4x 1.9" Humvee Beadlock Wheels
Single Wheel Option:

Please click here for the single wheel option (Z-Q0018)
Optional Parts:

1.9 Proline Tire Compatible Internal Beadlock Rings (Z-S0846)
Replacement Parts:

80x M1.6x12mm Screw (Black)
80x M1.6 Nut (Black)
Fit Tamiya hummer tires, bfg's or any our 1.9 size tires. Fit truck with 12mm wheel hex, such as Tamiya F-350, Hilux and RC4WD Trail Finder
Notes:

This wheel fits the Rock Beast 1.9" Scale RC Tires
Fits Gmade Sawback
This item was previously part number BL81. We have updated our part numbers and are sorry for any inconvenience this may cause you.
Due to many different methods to design Tires and Wheels, we have no control over other manufacturers products. So we can only tell you that RC4WD Tires and Wheels work together. In some cases our Wheels and Tires will work with other brand Wheels and Tires, but we can not guarantee the outcome.
