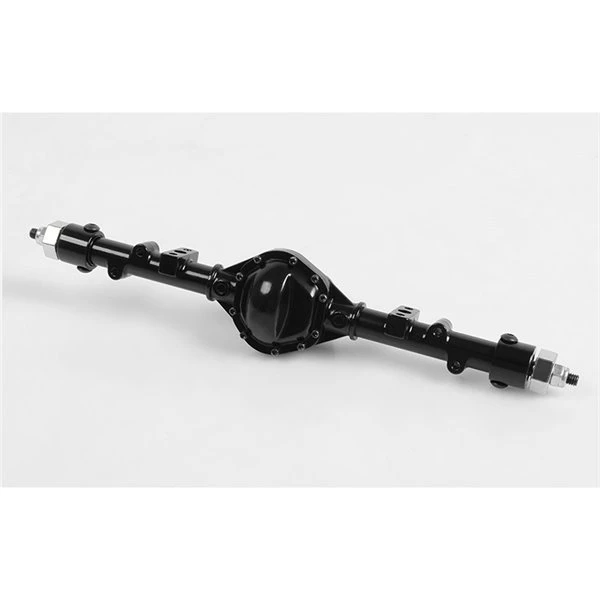

RC4WD – K44 Ultimate Scale Cast Rear Axle

This is the best reproduction to date on a scale axle. The K44 Axles have been designed from the ground up with input from some of the top scale builders in the world! With smaller axle tubes and many more features never before found on a set of radio control scale axles. RC4WD continues to push the limits on scale items and this new axle is a perfect example.

Specifications:
Die Cast Light Weight Metal Housing
Hex Thickness: 6mm
12mm Wheel Hex
5mm Axle Output Shaft
Hardened Steel Spool Gears
Gear Ratio: 2.67 : 1
Designed and Manufactured by RC4WD
Designed for 1/10 Trucks
Weight: 6.77oz / 192g

What's Included:
1x K44 Ultimate Scale Cast Rear Axle

Front K44 Axles:
K44 Ultimate Scale Cast Front Axle (Z-A0101)

Replacement Parts:
The Ultimate Scale Yota 1/10 Axle Ring & Pinion Gears (Z-S0027)

Replacement Hardware:
10x M1.6 x 4mm SHCS (Black) (Z-S1232)
4x M3 x 4mm BHCS (Black) (Z-S0745)
4x Metal Shield Bearing 5x11x4mm (Z-S0683)
2x RC4WD 12mm Axle Wheel Hexes (Z-S0239)
2x Nylock Nuts M4 (Silver) (Z-S1265)
1x M4 E-clip (Black) (Z-S0919)

Optional Parts:
Ultimate Axle 4 Link Mount (Z-S0133)
RC4WD 12mm Mini Hex Wheel Widener Set (+15mm) (Z-S0407)
Helical Gear Set for 1/10 Yota Axle (Z-G0059)
RC4WD ARB Diff Cover for K44 Cast Axle (Z-S1839)
RC4WD Poison Spyder Bombshell Diff Cover for Cast K44 Axle (Z-S1847)
