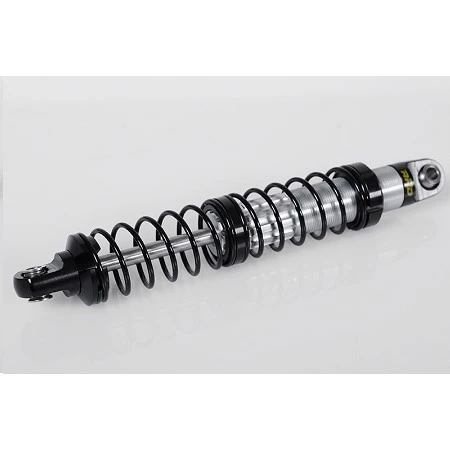

RC4WD – Rock Krawler RRD Emulsion Scale Dual Spring Shocks

Specifications:
CNC Machined
Billet Aluminum
Smooth Black Anodized
Rock Krawler Logo on Top
Dual Spring Design
Hole to Hole (Compressed): 2.55in / 64.8mm
Hole to Hole (Uncompressed): 3.54in / 90mm
Overall Length: 3.90in / 99mm
Travel Length: 1.02in / 26mm
Shock Body OD: 0.39in / 10mm
Spring Body OD: 0.57in / 14.5mm
Shaft Diameter: 0.14in / 3.5mm
Each Weight: 0.65oz / 19g
What's Included:
2x RC4WD Rock Krawler RRD Emulsion Scale Dual Spring Shocks (90mm)
1x Rock Krawler Decal Sheet

Replacement Parts:
RC4WD Shock Cap for Top of Rock Krawler RRD Shocks (Z-S1182)
Lower, Center and Threaded Spring Retainer for Rock Krawler RRD Shocks (Z-S1184)
Shock Ball End for Bottom of Rock Krawler RRD Shock (Z-S1186)
Replacement Shock Shafts for King Shocks (90mm) (Z-S0785)
Rebuild Kit for Scale King, ARB & Superlift Shocks (Z-S0788)
Optional Parts:

RC4WD 90mm Rock Krawler Shock Spring Assortment (Z-S1189)
Notes:

Fits Gmade Sawback
Fits Traxxas Rustler Front Axle, but you will need Steel Button Head Cap Screws M3 x 12mm (10) (Z-S0654)
Fits Traxxas TRX-4, but will require both 2mm (Z-S0600) and 3mm (Z-S0806) Black Spacers with M3 Holes
To use this shock with the SCX10 II, you will need to use a 3mm spacer on the top mounting point of the shock. (Z-S0806)
Use blue (medium) thread lock to the bottom shock shaft rod end before installing onto your vehicle to help keep it in place.
