RC4WD – TEQ Ultimate Scale Cast Axle (Front)

With improved steering and durability, the TEQ Ultimate Scale Axles are a modern version of the Yota II axles designed as an upgrade for Axial SCX10 II and Element Enduro line of RC trucks. These scale axles are cast from a high grade aluminum alloy and come with integrated suspension link mounts that construct a single, hardened unit. Solid and maneuverable, this set features universal style XVD shafts that deliver a tighter turning radius and high strength driveline. The ring and pinion gears are a CNC machined, hypoid tooth design and are linked to a 6 bolt hardened steel locker. The C-hubs feature interlocking grooves on the front axle which enables caster customization and the front pumpkin is offset providing more ground clearance. All of this is packed into a high strength cast aluminum case with a long lasting powder-coated finish. These RC Axles will look awesome on your custom Axial SC10 II or Element Enduro.

Specifications:
Die Cast Light Weight Metal Housing
Hardened Steel Spool Gears
5mm Axle Output Shaft
Full Ball Bearings
Powder-coated in Black
Width: 189.6mm / 7.46in
Gear Ratio: 8T/30T
12mm Steel Wheel Hex
Weight: 6.24oz / 177g

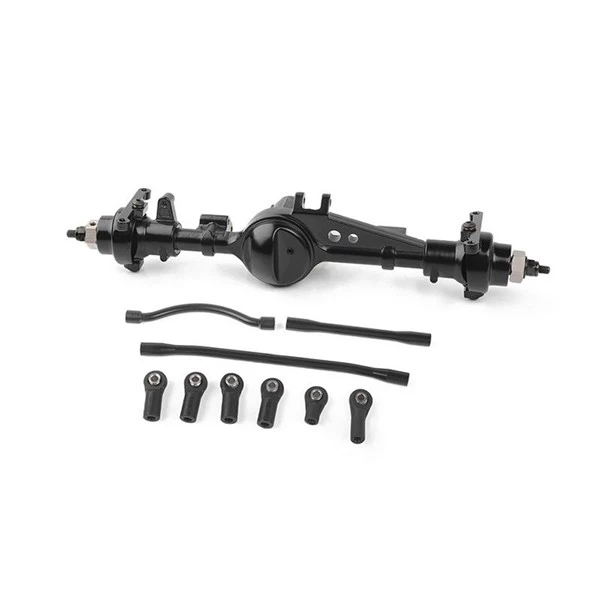

What's Included:
1x TEQ Ultimate Scale Cast Axle (Front)
1x 115.8mm Link
1x 63mm Link
1x 66mm Bent Link
1x M3 Plastic Bent Rod End
1x M3 Mini Plastic Rod End
4x RC4WD M3/M4 Plastic Short Rod Ends
2x M3 x 10mm Set Screws
4x M4 x 20mm Set Screws

Other TEQ Axles:
TEQ Ultimate Scale Cast Axle (Rear) (Z-A0133)

Replacement Hardware:
M4 Flanged Lock Nut (Black) (Z-S0620)
M2 X 3mm Set Screws
Steel Socket Head Cap Screws M2 x 5mm
Steel Socket Head Cap Screws M2 x 10mm (Z-S0849)
Steel Socket Head Cap Screws M2 x 14mm
Steel Button Head Cap Screws M3 x 8mm (Z-S0652)
M3 Plastic Bent Rod Ends (Z-S0074)
M3 Mini Plastic Rod End (Z-S0398)
RC4WD M3/M4 Plastic Short Rod Ends (Z-S1378)
M3 X 10mm Set Screw (Z-S0308)
M4 20mm Long Threaded Shaft (Set Screws) (Z-S0030)

Replacement Parts:
TEQ Ultimate Scale Cast Axle Steering Knuckles and C-Hubs (Z-S1975)
TEQ Ultimate Scale Cast Axle Diff Cover and Third Member (Z-S1980)
TEQ Ultimate Scale Cast Axle Housing (Front) (Z-S1976)
Replacement Steering Knuckles and C-Hubs for TEQ Ultimate Scale Axles (Z-S1975)
Steering and Panhard links for TEQ Axle (Z-S1977)
TEQ Ultimate Scale Cast Axle XVD Universal Axle Shafts (Front) (Z-S1978)
TEQ Ultimate Scale Cast Axle Ring and Pinion Gears W/ Locker (Z-G0076)
TEQ Ultimate Scale Cast Axle Service Kit (Front) (Z-S1985)

Notes:
Fits Axial SCX10 II
Fits Associated Element Enduro
To install on Element Enduro chassis you will need to use the stock panhard and drag link.
To retain a centered front axle the stock panhard link and drag link will need to the lengthened by loosening the rod ends 1-2 revolutions.
Please do routine maintenance.
Check the grease around the gears and also oil the bearings.
Do not over tighten screws as you can strip the holes. Use Locktite but do not use too much or you can damage the casing.
